LMT'D
Powerful torque-sensing ebike
This generation now features a TORQUE sensor.
Built with higher-end components and a powerful 95nm geared motor for faster acceleration. The torque sensor gives riders a smoother and more responsive experience with improved range and efficiency. WTB Groov-e tires, an air suspension fork, and Dual Piston Tektro Hydraulic brakes make for the ultimate commuter ride.
speed
Class 3 electric bike, with 28mph pedal assist and 20mph throttle
motor
Powerful 750w sustained geared hub motor with 95nm torque
range
30-50 miles depending on rider weight, terrain, incline, level of assist, etc.
frame
Lightweight Alloy Frame with internal protected & locked electronics
comfort
Frame geometry & components built for 'the most comfortable ride ever'
Service & Support
Seasoned Bike Mechanics Offer Expert Technical Support and Friendly Customer Service.
Learn More
1-Year Warranty
Every Ride1Up eBike Comes With a Warranty Against Manufacturing Defects. *Terms Apply
Learn More
30-Day Returns*
We're Confident That You'll Be Thrilled! If Conditions Are Met, Send It Back For a Refund. *Terms and Model Exclusions Apply
Learn More
Free Shipping
On All Bikes to Contiguous 48 States. $100 Direct Shipping to Canada. Exclusions Apply.
Learn MoreComponents
Motor
48V 750W Geared Hub Motor
Battery
48V14ah Reention Eel Pro Samsung Cells, Smart BMS
Display
KD218 Adjustable Speed Color Display
PAS Sensor
Integrated Sensitive Cadence Sensor PAS
Brakes Torque Version
Tektro HD-M285 180mm Hydraulic
Fork
Air Suspension 80mm Travel
Tires
WTB Groov-e 27.5'x2.4'
Throttle
Left side Thumb Throttle
Handlebar
ST Frame: City/Cafe Upright Handlebars XR Frame: 31.8mm Riser Bars, 50mm Rise
Controller
48V22A Lishui Sine-wave
Grips
Ergonomic Locking Rubber Grips
Shifters
Shimano 8-speed Rapidfire Plus
Gearing
44T Prowheel Alloy Chainring
Cassette
Shimano 11-32T
Derailleur
Shimano RD-M370
Chain
KMC Z8.3 8-speed Chain
Spokes
Black Stainless Steel, 13G
Saddle
Selle Royal Freeway Plush Gel
Seat Post
Promax 350mmx31.6mm Angle Adjustable Seat Post
ST Stem
Promax 28.6mm, 45mm Ext. 31.8mm Bar Clamp
Rack
Available As Accessory Purchase
Front light
60 Lux Front Light
Additional
Water Bottle Bosses and Chainstay Guard

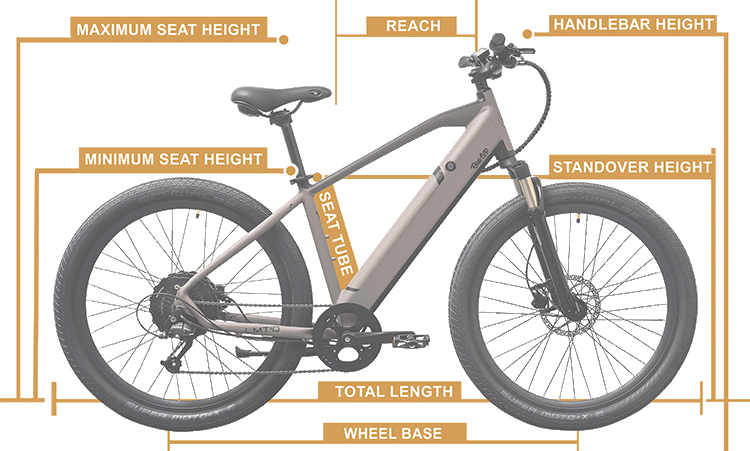

Dimensions and Sizing
- Weight Capacity300lbs
- Weight53lbs
- Seat Tube19”
- Minimum Seat Height32"
- Maximum Seat Height40”
- Wheel Base43"
- Total Length70"
- XR Frame Dimensions:
- Rider Height Range5'6"-6'4"
- Stand-over Height29”
- Handlebar Reach20”
- Handlebar Height42”
What's Included
48V Two Amp Charger and Cable. LED Indicator Feature Provides Realtime Charging Status.

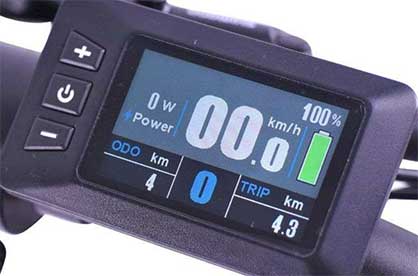

Handlebar Mounted 2.2" Color LCD Display. Customizable Pedal Assist (PAS) Settings and Advanced Metrics for Intelligent Riding Feedback.

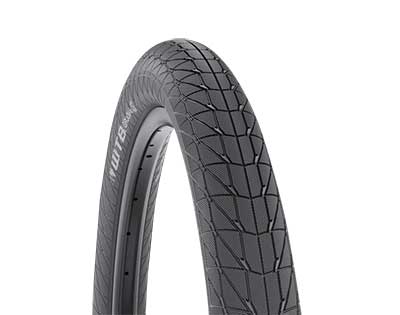

WTB Groov-e 27.5" x 2.4" Textured Tires. High Performing and Reliable - Perfect for Rain or Shine.

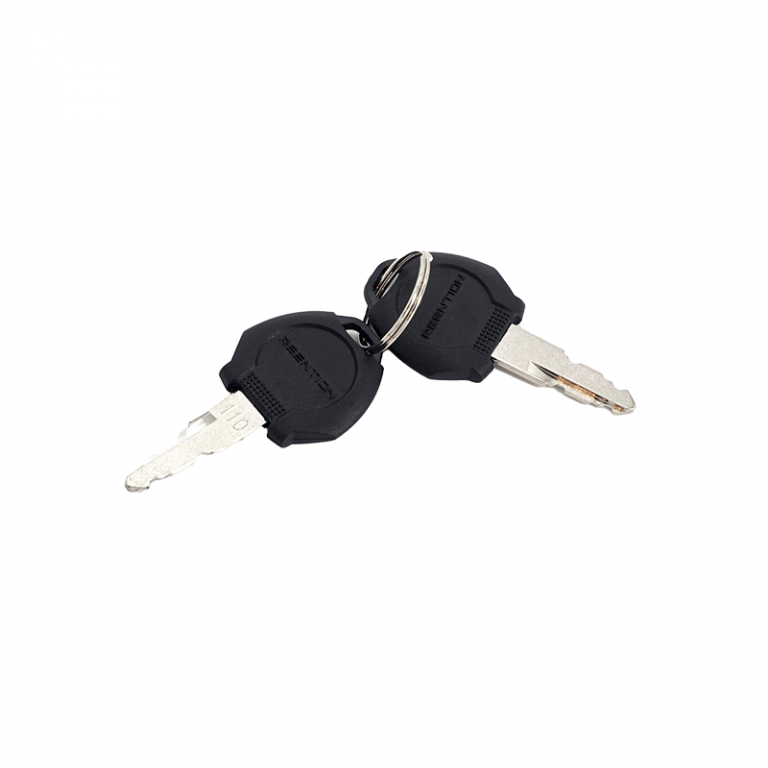

Two keys for the removable battery system. Theft protection design –– battery anxiety begone!
Heavy Duty Adjustable Chainstay Kickstand. High Load Capacity for Extra Support and Stability.
